Description

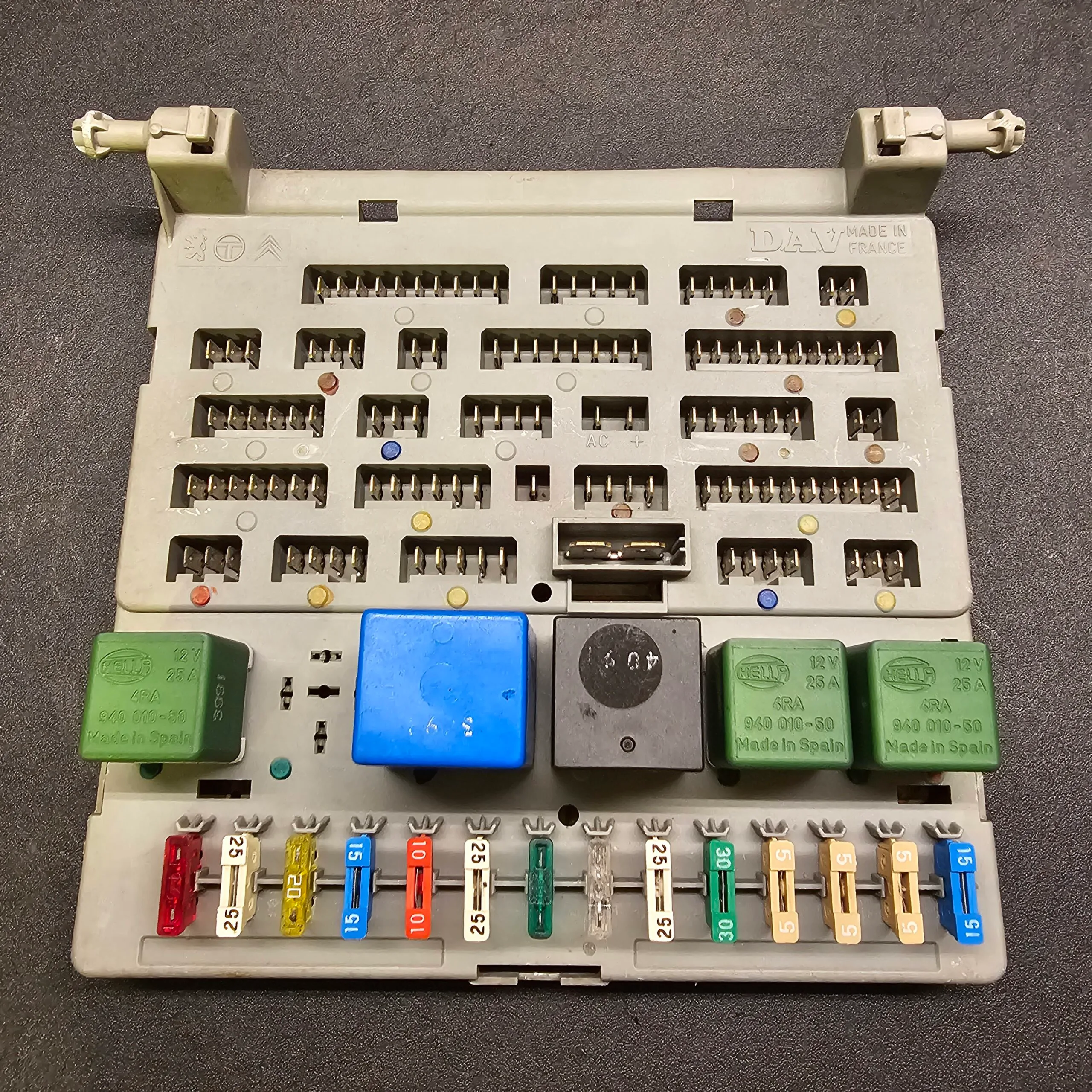

Original DAV reconditioned fuse box / relay box for the Peugeot 205 and 309.

Can be found in all Peugeot 205 and 309 types and various other cars from the 80s and 90s.

The price is without fuses and without relay. Relays can be added as an option. Specifically on request, we can supply with fuses, windscreen wiper relay and/or indicator relay if required.

On the checkout page, you can specify which fuses you want.

You also have the option of ordering the original black protective cover.

Original

This is an original DAV fuse box in very good restored condition. It is not a new product, some scratches may therefore be present.

PSA reference numbers:

Fuse box: 6500.08 (13 hedging positions)

Fuse box: 6500.12 (14 fuse positions)

Black protective cap / lid: 6500.01

Implementation

There are 2 types of fuse box versions in circulation.

• Version 1 with 13 fuse positions. No fuse can be inserted in the 14th position. There are no contact pins there. The 2-pin plug position at the top right of the fuse box is empty.
• Version 2 has 14 fuse slots, all of which are internally connected. A fuse CAN, however, be fitted in the 14th slot. There are clearly visible contact pins. The same applies to the 2-pin plug socket at the top right of the fuse box.

You can easily see which type you have.

If the right-hand-most fuse slot (14th slot) contains a fuse, then you have version 2 with 14 fuses. If there is no fuse, check whether there are any contact pins. If you see copper pins in the 14th position, you have version 2. If there are no pins, you have version 1.

You can also check whether the 2-pin yellow socket in the top-right corner of the fuse box contains two pins. If it is empty, you have version 1. If it contains two pins, you have version 2.

We have both versions available. Both versions are suitable for both LHD and RHD and can be fitted to the Peugeot 205 and 309.

Location and function

Located on the driver's side under the steering wheel, the fuse box fuses all electrical components in the Peugeot 205, Peugeot 309 and other models. Also provides for the placement of several relays, the windscreen wiper automatic and the indicator automatic. Usable for both LHD (Left-Hand Drive) and RHD (Right-Hand Drive).
