Description

Electric window control and central door locking wiring harness for the left door gate in various Peugeot 205 models, except phase 2.

Original and quality

The wiring harness has the original dimensions and is new.

The grey 2-pole plug for the electric window mechanism motor is reused. The 5-pole yellow ground plug and the 5-pole white plug are also reused. These 3 plugs are no longer available new.

For strength and to prevent corrosion and short circuits, each connection between copper conductor and cable lug is finished with heat shrink tubing. This is our standard procedure. Our wire harnesses therefore have an extra long and reliable life span.

Options for with or without surrendering the old wiring harness

• Option 1: You can choose for us to supply the left door door wiring harness complete right away. The plugs we reuse, as mentioned above, we supply ourselves from our stock of used plugs.

• Option 2: The other choice is that you send us your old original left door port wiring harness, so that we can reuse the 3 unavailable plugs from it. As these are very scarce, you will then pay less. We will contact you after your purchase.

Location and connection of the left door door harness

The wiring harness controls the electric windows and central door locking in the Peugeot 205. Found in the left door.

Overview of the connections

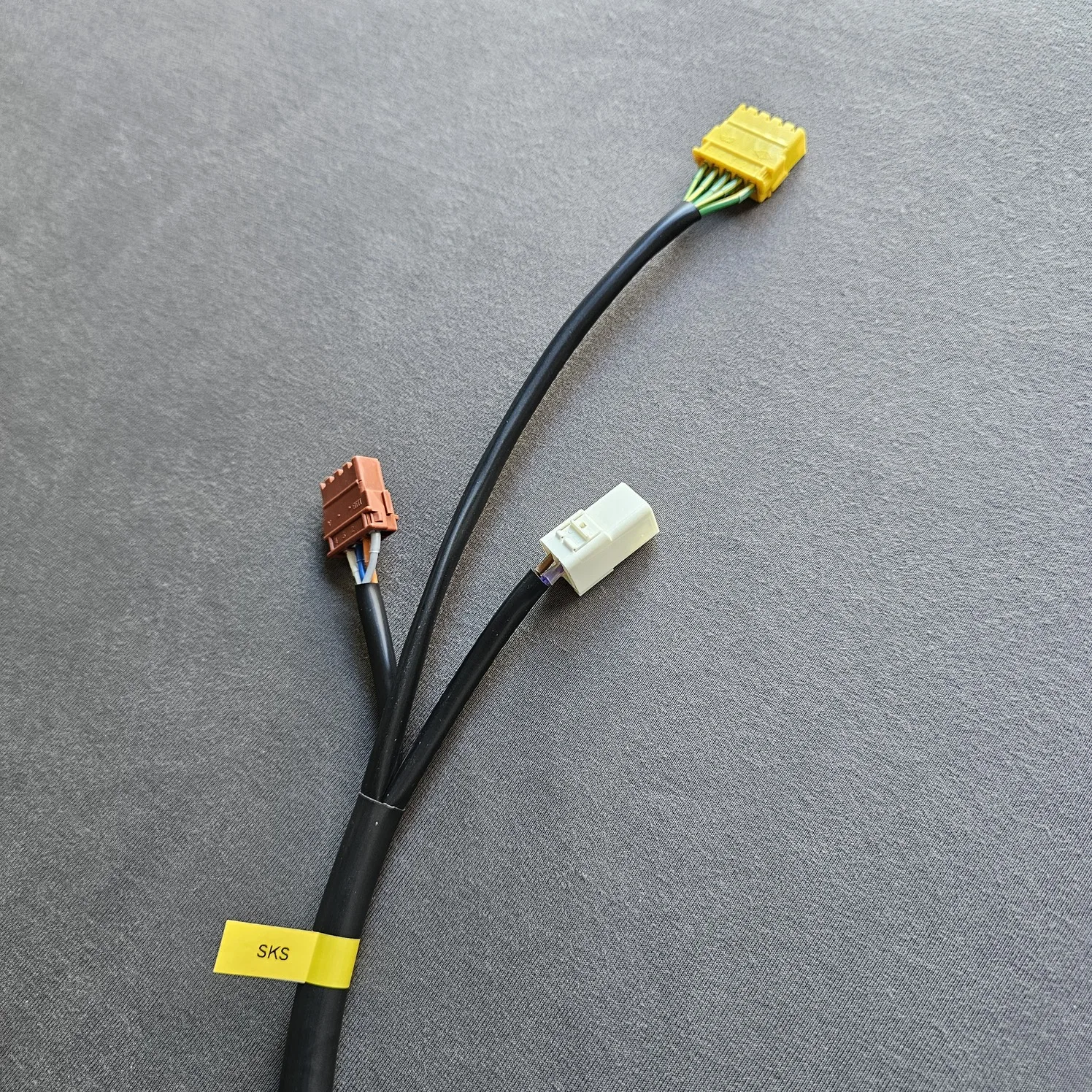

• Connector plugs at fuse box
• Earth plug at fuse box
• Plug motor connection electric window left

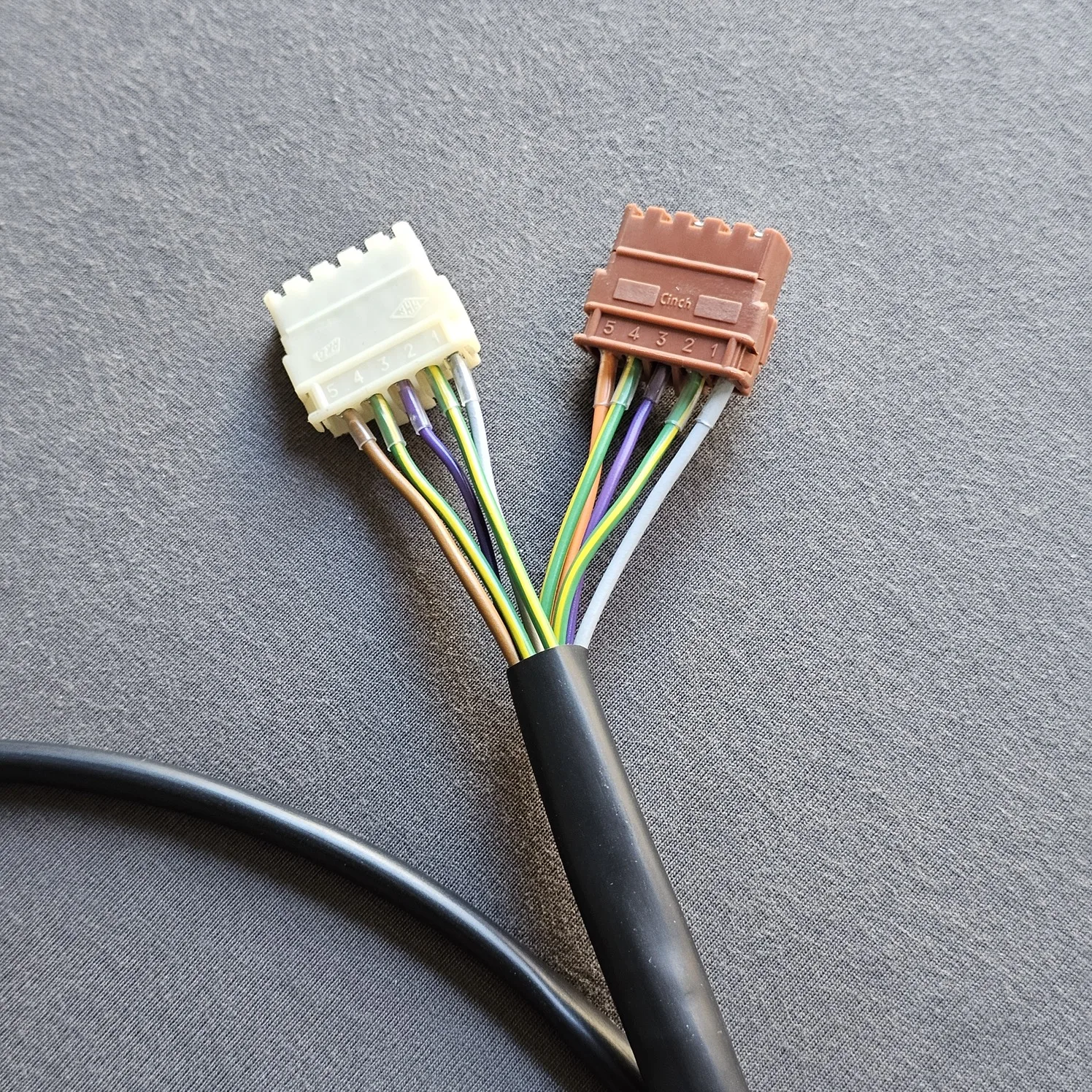

• Electric window control switch for left window
• Electric window control switch for right window

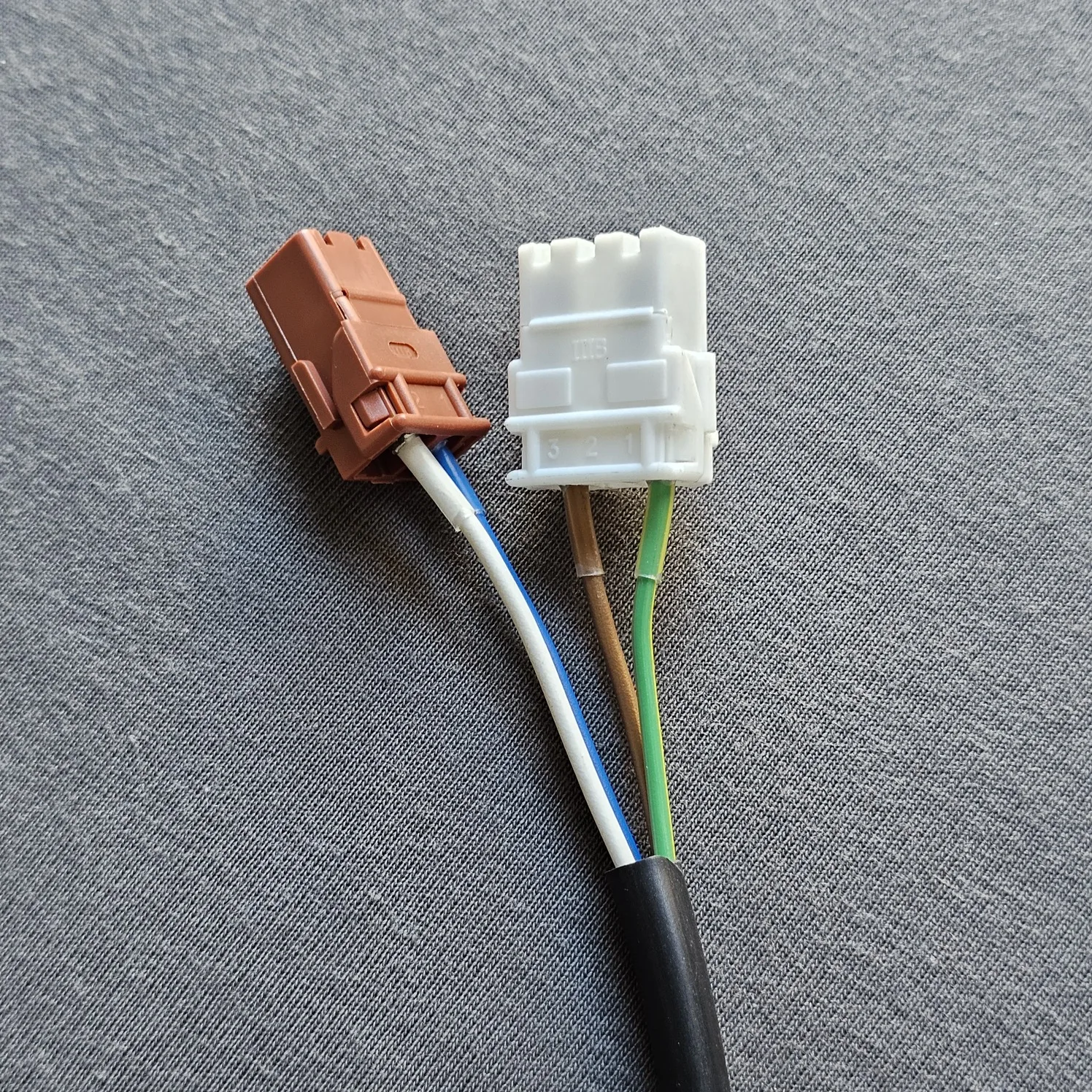

• Central door lock motor pulse left door
• Central door lock motor pulse loop-through right door
