Description

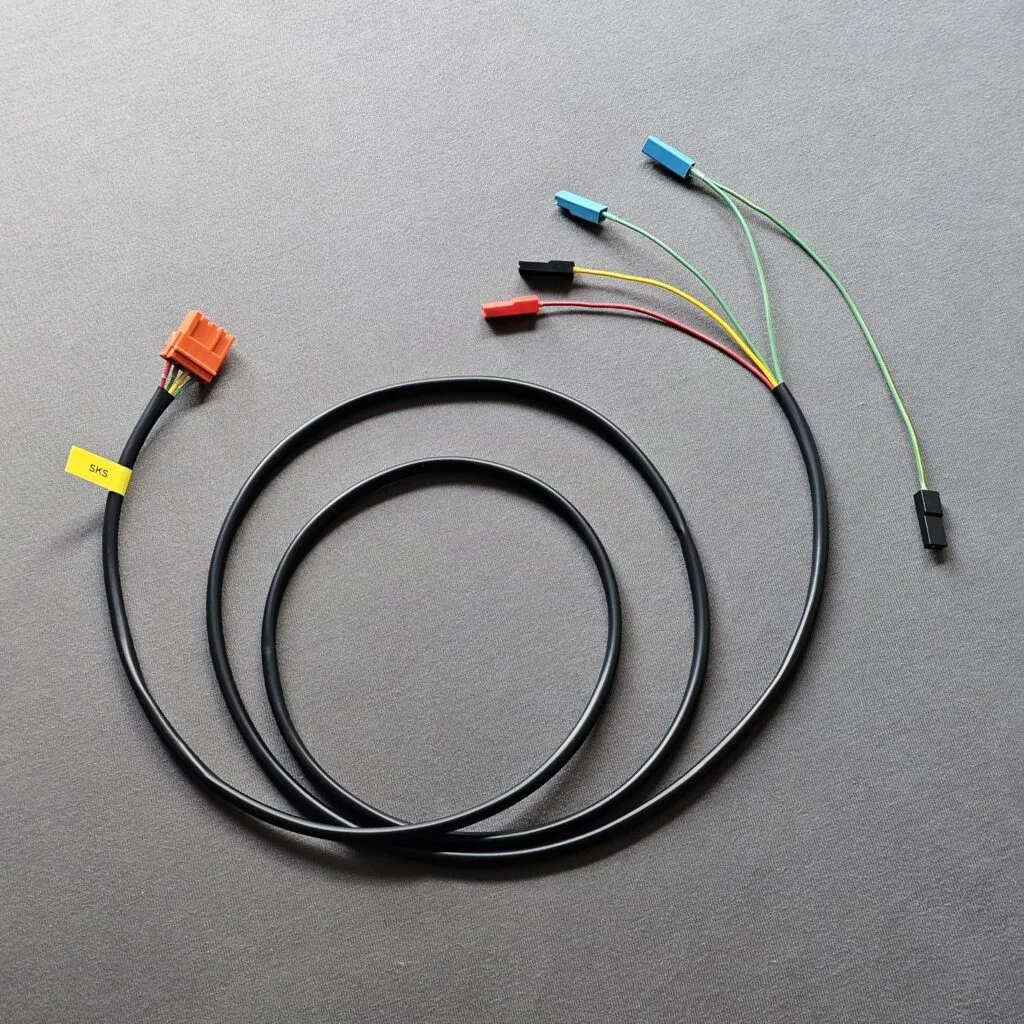

Card reading lamp and interior / interior lighting wiring harness for various models of Peugeot 205 of all builds, except the CTI / convertible version.

Original and quality

The wiring harness has the original dimensions and is new. The orange plug is reused as it is no longer available new.

For strength and to prevent corrosion and short circuits, each connection between copper conductor and cable lug is finished with heat shrink tubing. This is our standard procedure. Our wire harnesses therefore have an extra long and reliable life span.

Choice

• Type 1: There is a version with a 3-pin brown female plug. If this is in your wiring harness, you have type 1.

• Type 2: If you do not see a brown 3-pin plug in your wiring harness, check the number of wires in the orange plug. If there are 3, select type 2.

• Type 3: If you do not see a brown 3-pin plug in your wiring harness, check the number of wires in the orange plug. If there are 4, select type 3.

Trunk lid wiring harness location and connection

The wiring harness controls the map reading lights and interior lighting. Found in the roof canopy in the Peugeot 205 between the passenger and driver.

Overview of the connections

• Orange connector
• Card reading lamp
• Indoor lighting
• Ground plugs
